PMB 40

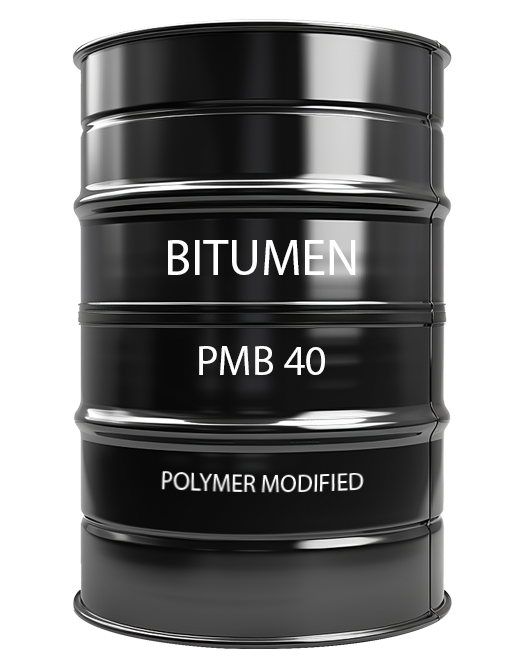

Polymer Modified Bitumen PMB 40

Polymer Modified Bitumen (PMB) 40 is a type of bitumen that is modified with polymers to improve its performance properties, specifically in terms of elasticity, strength, and resistance to high temperatures and loads.

  • Appearance: Black solid or a viscous liquid
  • Standards: IS 15462:2004
  • HS Code: 27132000

Package: Bitumen are packed in

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Jumbo Bags of 1Ton
  • Bulk Bitumen Tank Container

  • TDS Technical Data Sheet - EN (English)
  • SDS Safety Data Sheet - EN (English)

Polymer Modified Bitumen PMB 40 - Technical Specifications

Properties Units Limits Test Methods
Penetration @25°C (77°F), 100gm, 5sec0.1MM30-50ASTM D5
Softening Point, Ring & Ball°CMin. 60ASTM D36
Fraass Breaking Point°CMax. -16EN 12593
Flash Point Cleveland open cup°CMin. 220ASTM D92
Elastic Recovery at 15°C%Min. 30ASTM D6084
Separation, Difference in Softening Point°CMax. 3-
After Rolling Thin-Film Oven Test (RTFO)ASTM D1754
Loss on Heating
%WtMax. 1.0ASTM D6
Increase in Softening Point
°CMax. 5ASTM D36
Drop in Penetration
%Max. 35ASTM D5
Elastic Recovery at 25°C
%Min. 35ASTM D6084

Key Characteristics of PMB 40

  1. Polymer Modification: PMB 40 is modified with polymers such as styrene-butadiene-styrene (SBS), ethylene-vinyl-acetate (EVA), or other similar additives. This modification improves the bitumen’s resistance to deformation, cracking, and aging.

  2. High Elastic Recovery: The polymer modification provides enhanced elasticity, allowing the binder to recover its shape after being deformed by traffic loads.

  3. Enhanced Resistance: It has improved resistance to rutting at high temperatures, cracking at low temperatures, and fatigue under repeated traffic loads.

Main Applications Of Polymer Modified Bitumen PMB 40

PMB 40 is typically used in applications where high temperature stability, high load-bearing capacity, and flexibility are crucial:

  1. Highways and Expressways: Used in high-traffic highways and expressways due to its high resistance to rutting and deformation under heavy and continuous traffic.

  2. Urban Roads and Industrial Zones: Applied in urban areas and industrial zones where roads experience frequent heavy vehicle traffic and high temperature exposure.

  3. Bridges and Elevated Roads: Suitable for bridge decks and overpasses due to its enhanced flexibility and resistance to thermal stresses, preventing cracking and rutting.

  4. Airport Runways and Taxiways: Used in airport pavements where heavy aircraft loads and high temperatures demand superior resistance to rutting and deformation.

  5. Heavy-Duty Pavements: Ideal for heavy-duty pavements such as those in container terminals, freight yards, and industrial facilities that see frequent loading and unloading activities.

PMB 40 is a polymer-modified bitumen with a penetration grade of 40. It is designed to offer high resistance to rutting, cracking, and deformation under heavy traffic loads and extreme temperature variations. Its polymer modification enhances its elasticity, durability, and flexibility, making it suitable for highways, bridges, airport runways, urban roads, and heavy-duty pavements in hot climates or high-stress conditions.


Various Packing Method for Polymer Modified Bitumen PMB 40

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

steel drums

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

jumbo bag

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Bitumen tank Container

Tank Container

These are large, insulated containers used for the international transport of bitumen.
