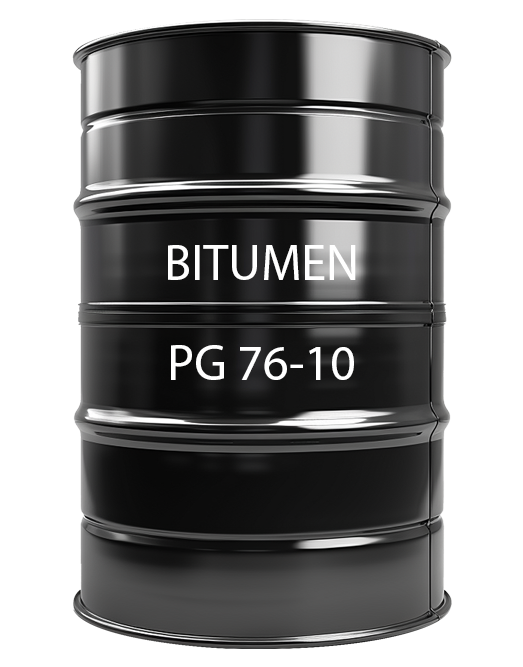

PG 76-10 Bitumen


Performance Grade 76-10 Bitumen

Performance Grade (PG) bitumen PG 76-10 is a type of asphalt binder that falls within the Superpave Performance Grading (PG) system. This classification ensures that the bitumen can perform under specified temperature conditions, making it suitable for various demanding pavement applications.

  • Appearance: Black solid or a viscous liquid
  • Standards: AASHTO M 320-16
  • HS Code: 27132000

Package: Bitumen are packed in

  • New Steel Drums of 200Kg / 180Kg / 156Kg / Customized
  • Jumbo Bags of 1Ton
  • Bulk Bitumen Tank Container

  • TDS Technical Data Sheet - EN (English)
  • SDS Safety Data Sheet - EN (English)

Performance Grade PG 76-10 Bitumen - Technical Specifications

Properties Units Limits Test Methods
Average 7-day maximum pavement design temperature°C<76
Minimum pavement design temperaturea°C>10
Original Binder
Flash Point
°CMin. 230AASHTO T48
Viscosityb @135°C
Pa.sMax. 3.0AASHTO T316
Dynamic Shearc , G*/sin δd at 76°C at 10rad/s
kPaMin. 1.0AASHTO T315
Residual Binder from Rolling Thin-Film Test (AASHTO T240 / ASTM D2872)
Mass changee
%WtMax. 1.0AASHTO T240
Dynamic Shear, G*/sin δd at 76°C at 10rad/s
kPaMin. 2.2AASHTO T315
Pressure Aging Vessel Residue (PAV)
PAV Temperature
°C110AASHTO R28
Dynamic Shear, G*.sin δd at 37°C at 10rad/s
kPaMax. 5000AASHTO T315
Creep Stiffnessf at 0°C
AASHTO T313
    - S value
MpaMax. 300
    - M value (slope)
Min. 0.30
Direct Tensionf at, 0°C
AASHTO T314
    - Failure strain, test temp @ 1.0 mm/min
%Min. 1.0

Notes
a - Pavement temperatures are estimated from air temperatures using an algorithm contained in the LTPP Bind program, may be provided by the specifying agency, or by following the procedures as outlined in M323 and R35.
b - This requirement may be waived at the discretion of the specifying agency if the supplier warrants that the asphalt binder can be adequately pumped and mixed at temperatures that meet all applicable safety standards.
c - For quality control of unmodified asphalt binder production, measurement of the viscosity of the original asphalt binder may be used to supplement dynamic shear measurements of G*/sinδ at test temperatures where the asphalt is a Newtonian fluid.
d - G*/sin? = high temperature stiffness and G* sinδ = intermediate temperature stiffness.
e - The mass change shall be less than 1.00 percent for either a positive (mass gain) or a negative (mass loss) change.
f - If the creep stiffness is below 300 MPa, the direct tension test is not required. If the creep stiffness is between 300 and 600 MPa, the direct tension failure strain requirement can be used in lieu of the creep stiffness requirement. The m-value requirement must be satisfied in both cases.

Main Applications Of Performance Grade PG 76-10 Bitumen

PG 76-10 Bitumen ability to withstand high temperatures and resist thermal cracking in cooler conditions makes it an excellent choice for various heavy-duty pavement applications, particularly in regions with extreme climate variations.

  1. Highways and Major Roadways: Used for paving high-traffic highways and expressways, PG 76-10 offers exceptional resistance to rutting and deformation, ensuring durability under heavy loads and high temperatures.

  2. Airport Runways and Taxiways: Applied in airport runways and taxiways, PG 76-10 provides the strength necessary to support the weight of aircraft while maintaining performance across varying weather conditions.

  3. Bridges and Overpasses: Utilized in constructing bridge decks and flyovers, this binder prevents cracking and deformation caused by thermal stresses and heavy vehicle loads.

  4. Industrial Areas and Heavy Traffic Routes: Ideal for industrial pavements and service roads, PG 76-10 ensures long-lasting performance and durability, effectively supporting high-load conditions.

  5. Pavement Rehabilitation and Overlays: Commonly used in asphalt overlays for rehabilitating existing pavements, PG 76-10 enhances structural integrity and extends the lifespan of older road surfaces.

  6. High-Stress Urban Areas: Effective in urban environments where pavements experience heavy traffic and thermal stresses, this binder reduces the likelihood of surface deformation and cracking.

  7. Parking Lots and Commercial Areas: Employed in the construction of commercial parking lots and shopping centers, PG 76-10 provides a durable surface capable of handling regular vehicle use without significant deformation.


Various Packing Method for PG 76-10 Bitumen

Packing bitumen is an essential process to ensure its safe transportation, storage, and handling. The method of packing often depends on the type of bitumen, the transportation method, and the end-use. Here are the various methods used to pack bitumen:

steel drums

Drum Packing

Bitumen is commonly packed in steel drums, which are robust and provide good protection during transportation.

jumbo bag

Jumbo Packing

Bitumen is packed in high-density polyethylene (HDPE) bags and are lined with a plastic bag to prevent leakage.

Bitumen tank Container

Tank Container

These are large, insulated containers used for the international transport of bitumen.
